i3 Breather by L3 Harris

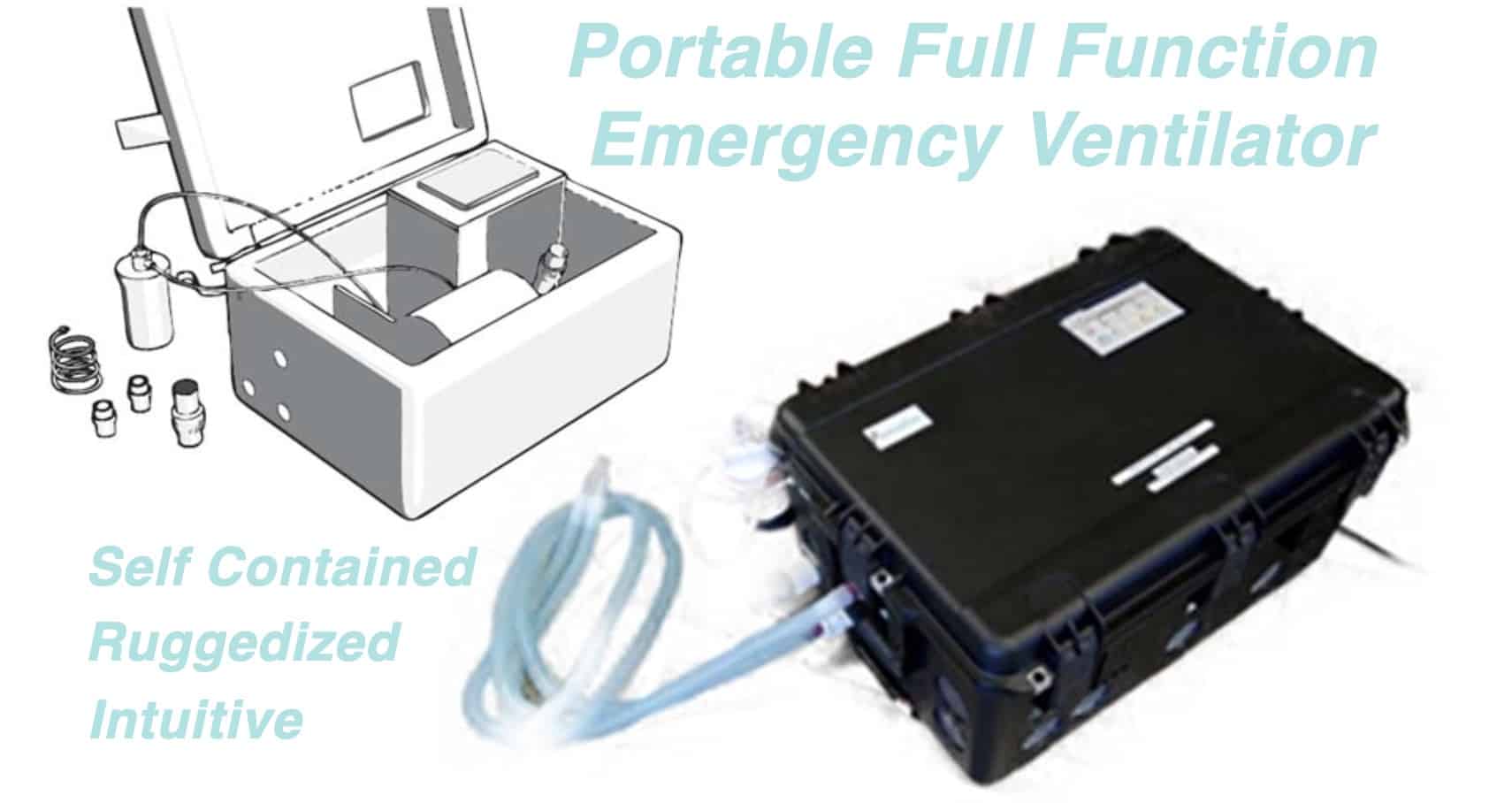

L3Harris Management committed a team…to the DIY Hack-a-Vent program. Despite the [current] challenges, these engineers executed a modified 5-Day Sprint process with generous advisory consultation from five doctors and several community volunteers to rapidly develop the designs described [in Vulcan scout card]. As a brief overview, our i3 Breather solution, has prioritized the following design principles:

  • Flexibility: individual subsystems or components can be modified/ improved/ supplemented in a modular approach and will interoperate with other sub-systems
  • Availability of Parts: attempts to use parts which are readily accessible or easily built/modified and avoids using typical medical parts such as AMBU bags.
  • Simplicity: seeks a minimalist approach for both assembly and operational simplicity.

Characteristics

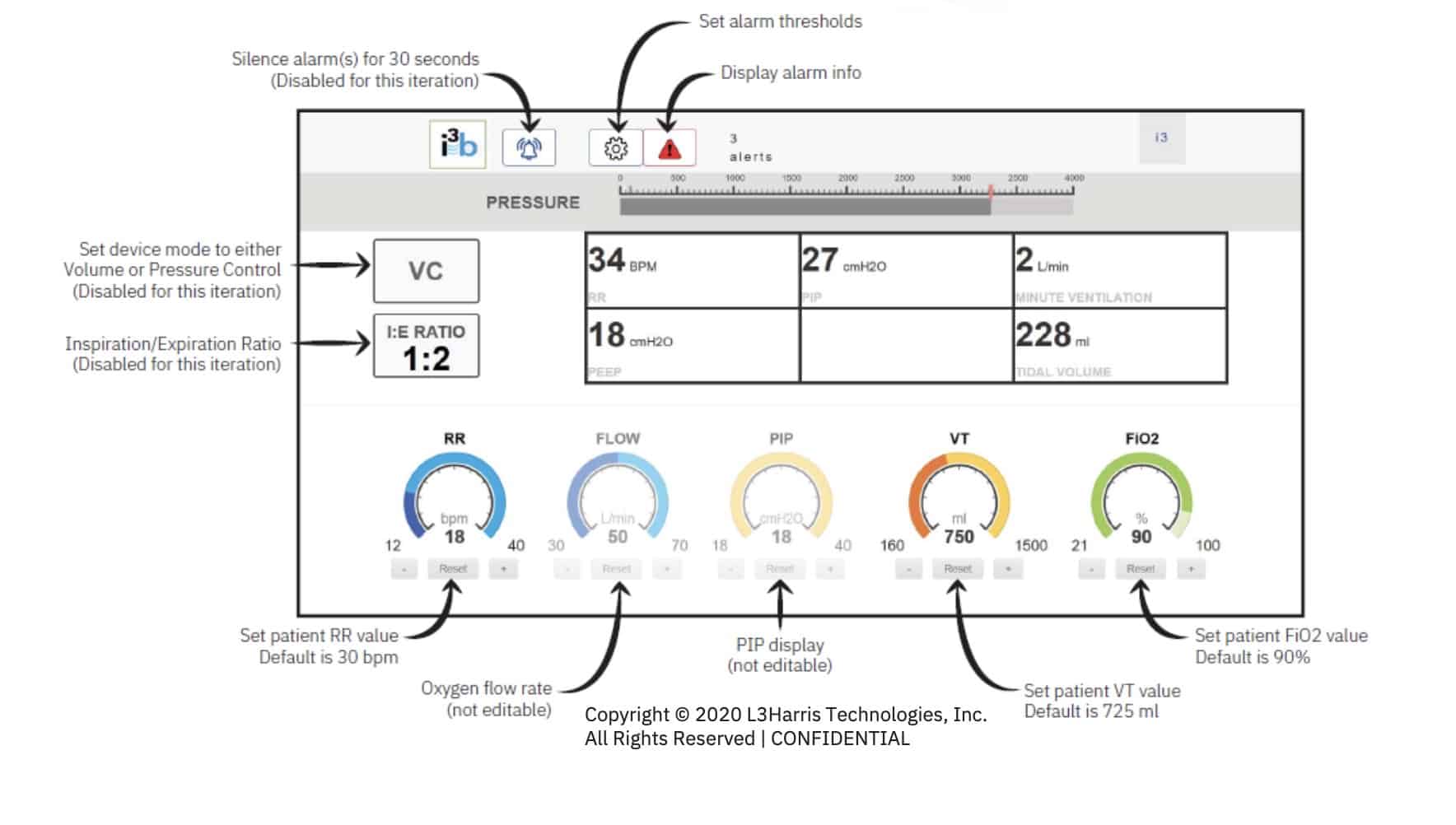

  • Easy to use: Intuitive controls and precise adjustments of PIP, PEEP, RR, and I:E Ratio, all reported to the user
    interface with Tv, RMV, and a respiratory circuit pressure graph. Simple instructions are easy to digest for healthcare professionals to quickly adapt.
  • Calibrated Reliability: Water-based pressure control valves never lose calibration. BLU3 Vent’s design ensures reliable PIP and PEEP fail safe mechanisms, regardless of the amount of storage time prior to use.
  • Assist Mode: Healthcare professionals may select Pressure Assist-Controlled mode for patients as they return to normal breathing habits. User interface displays a count of spontaneous inhalations detected.
  • Real-Time Oxygen Table: Oxygen supply requirement to meet FiO2 goal is calculated and displayed on interface. Provides capability to operate effectively during times that medical oxygen sensors are not available.

Specifications

Device Controls: LCD, PIP/PEEP Tube Height, RR Knob, I:E Input, Mode Select, Silence
Ventilation Modes: PC, P-A/C
Breaths Per Minute: 0-40 (1BPM increment)
Tidal Volume: 150 – 1000 mL
PIP Range: 8-40 cmH2O
Supplemental Oxygen: Low Flow (<15 LPM)
Dimensions: 19 x 13 x 25 inches
Weight: 40 lb
Electrical Input: AC 110/220 V, 50/60 Hz
or 12V battery powered
PEEP Range: 5-25 cmH2O
Air Source: Air Pump

Partners

Download Information Sheet
